    Birk Manufacturing is a leading thermal partner throughout the heat processing industry. Birk’s cartridge heaters are known for their extremely high surface loading that allows large power to be delivered where space is extremely limited. A cartridge heater is a tube-shaped heating element that can be inserted into drilled holes. Cartridge heaters provide localized and precise heating. These cartridge heaters are manufactured with a resistance coil wound around a ceramic core. This core is then surrounded by dielectric and encased in a metal sheath. Powered heat transfer through the coil to the sheath causes the sheath to heat up. This heat transfer then heats the inside metal part that requires an elevated temperature.

    If purchasing one of Birk’s 1/8” swaged in-stock cartridge heaters, the fit/drilled hole size for a small 1/8 inch cartridge heater is integral to the overall operation and heater lifespan. In a low or medium temperature application (315°C (660°F) or below), holes can be drilled to .008” over the nominal size of the drill, resulting in fits of .014”. While this fit will be looser and does not permit optimal heat transfer, it aids in the installation and removal of the cartridge heaters, especially those with longer sheaths. At high watt densities, a close fit is much more critical. The holes should be drilled and then reamed. With a tighter fit, the heater will run cooler and have a longer life span.

    Birk’s 1/8 inch cartridge heaters are a great solution for reaching elevated temperatures. This in turn suggests that incorporating a temperature sensor and controlling feature would be best for the overall application. Birk has a vast temperature sensor product offering along with direct access to design engineers who will be able to advise customers whether or not to integrate a surface mount or bolt-on RTD or thermocouple.

    In some applications, an embedded temperature sensor or higher watt density is required. This can be achieved with a custom cartridge heater solution. Custom cartridge solutions allow Birk’s customers to achieve their thermal needs even in the most challenging applications.

    The following are technical specifications and capabilities for our Cartridge Heaters:

    • 1/8 inch Swaged / Small Cartridge Heater
    • Bore size is 0.125” +0.0005” / -0.0000”
    • Offered in 1”, 1.25”, or 2” cartridge lengths
    • Max temperature: 600°C
    • 24 and 48 DC voltage available with multiple wattage options to meet your application needs.
    • Standard cartridge heaters have 18” 26 AWG Teflon stranded leads.

    Part Number Dimension A (in) Wire Guage Operating Voltage Wattage Watt Density Resistance RFQ
    1100 1.00 26 24 25 125 23.04 RFQ
    1101 1.00 26 24 50 250 11.52 RFQ
    1102 1.00 26 48 25 125 92.16 RFQ
    1103 1.00 26 48 50 250 46.08 RFQ
    1104 1.25 26 24 37.5 125 15.36 RFQ
    1105 1.25 26 24 75 250 7.68 RFQ
    1106 1.25 26 48 37.5 125 61.44 RFQ
    1107 1.25 26 48 75 250 30.72 RFQ
    1108 2.00 26 24 75 125 7.68 RFQ
    1109 2.00 26 48 75 125 30.72 RFQ
    1110 2.00 26 48 150 250 15.36 RFQ
    3-D Printing industry: Nozzle heaters for extrusion dies, hot runner systems, filter changing equipment
    Apparatus construction & laboratories: Hot plates, industrial baths, distillation plants, soldering baths, oil sumps and heating, sterilizing baths, oil economizers
    Medical technology: Inhaling devices & sterilizers, polymerization devices, dialysis equipment
    General machine construction: Small air heaters, expansion screw heating, book binding machines, cold compressors
    Birk specializes in "engineered solutions," not standard products you can get elsewhere. Our design team thrives on developing innovative solutions to complex problems. Our continuous implementation of lean processes allows us to deliver prototypes in days or weeks, where others quote months. Each thermal system is custom-designed to meet the specific requirements of your project.
    Manufactured under DIN ISO EN 9001 standards

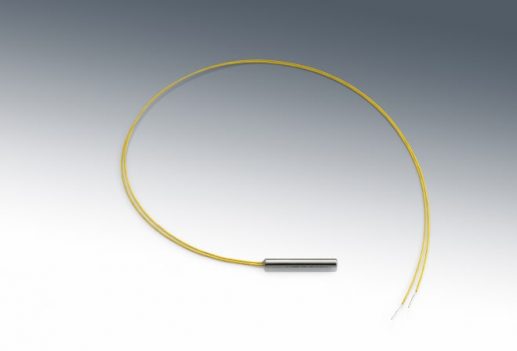

    Small 1/8 Inch Custom Cartridge Heater
    Small 1/8 Inch Custom Cartridge Heater
